Series R68 Classic

DISCONTINUED MODEL
For new designs, we recommend the improved e-chain® Series E2 tubes, R68 new

Series R68 is available from stock in limited numbers. Product support and storage are limited as of 2012. For questions, please refer to your igus® contact person. Thanks for your understanding
Series R68 new - Tube, openable along the outer radius

Here you can configure your e-chain system® individually. All entries and changes are taking over to the part list which is situated at the end of the page.

Series R68 - Tube, openable along the outer radius

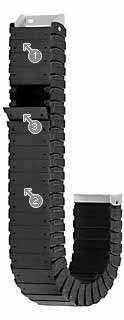

1. Fully enclosed - very good protection for cables and hoses, even against hot swarf
2. Small pitch for quiet, smooth running
3. Lids removable along the outer radius

For E2 R Series R68 new Available inner widths Bi: 75 to 175 mm
Available bend radii R: 100 to 300 mm
Pitch: 36 mm per link = 28 links/m

When to use series R68 E2 tubes

If very quiet running is required
At particularly high speeds
For high requirements for chip tightness

When not to use series R68 E2 tubes

If a particularly cost-effective solution is required
Series R167
When no swarf protection is required
E20000 medium Series 3400
For new designs
Series R68 New

Installation dimensions


Part No. :
Inner width Bi [mm]:
Bending radius R [mm]:
Travel distance S [mm]:
Fixed end dM [mm]:
Chain length^** [mm]:
Number of chain links :
External width Ba [mm]:
H^* [mm]:
D [mm]:
K [mm]:
H2 [mm]:
D2 :
K2 [mm]:
Hi [mm]:
Ha [mm]:
Weight per link [g]:
Weight [kg/m]:
* The required clearance height is HF = H + 40 mm (at 2.5 kg/m fill weight), which should be observed in all types of applications. Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.

A=moving end, B=fixed end
Pitch: 36 mm
Chain links per m: 28
Travel: S
Tube length = S/2 + K

Unsupported length

The unsupported length depends on fill weight
X axis: unsupported length in m FLB/FLG
Y axis: fill weight in kg/m
Lower scale: travel S in m
FLB = unsupported with permissible sag
FLG = unsupported with straight upper run

Price index:

Opening mechanism :

Personal contact

Application examples 3D-CAD Samples and catalog order E-Chain® Expert call Service life calculation PDF file Ask the product expert

Designing with igus®

Interior separation possible

3 mounting bracket variants

3 widths and 7 bend radii

Design specificationFurther information on "unsupported application"

Design specificationFurther information on "gliding application"

Assembly instructions

Other installation types

Technical specifications

Strain reliefs

Interior separation

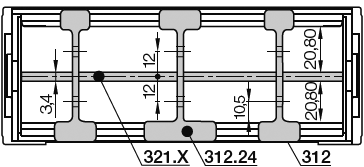

Option 1. Separators

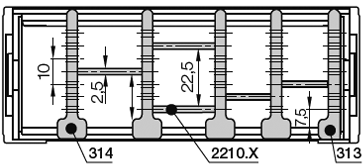

Option 2: Full-width shelves

Option 3: Shelves

Product range


unassembled	assembled
Per . chain link

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator


Part No. :

Pc. Add to part list

Online Services:

Separators are used to vertically separate the interior of the energy tube. They can be moved and allow the option to divide the interior into multiple chambers.

Product range


unassembled	assembled
Per . chain link

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Width [mm]:
Part No. :

Pc. Add to part list

Online Services:

This option is useful when using many thin tubes with similar diameters. This option takes up the entire inner width of the tube.

Product range


unassembled	assembled
Per . chain link

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Width [mm]:
Part No. :

Pc. Add to part list

Online Services:

This option is useful for applications with many cables with different diameters. Partial divisions in blocks can be used, or the entire width Bi can be used. The option 3 shelves can be combined with option 1 separators

Mounting brackets

Steel - one-piece

Steel – in two parts

Steel

unassembled	assembled

Locking

For short and long travels

Fast assembly

Front attachment option


:
Part No. :
A [mm]:
B [mm]:
C [mm]:

Strain reliefs

unassembled	assembled

One part for all chain widths

Electrically conductive

For short and long travels

Variety of parts

Prefabrication

Option of fastening on the front side

Part No. :

A [mm]:

B [mm]:

Strain reliefs

unassembled	assembled

Pivoting

For short and long travels

Front attachment option

Part No. :

Strain reliefs

Guide troughs

"Super-aluminium", "Basic" guide trough

"Super-Alu" guide trough, "Heavy Duty"

Steel guide troughs

1. Trough side part, aluminium, 2m

2. Glide bar, plastic, 2m

3. Plastic glide strips*, side, 2m

4. Clamping shoe, aluminium

5. C-profile, galvanised steel

6. Screw M6 x 16

7. Sliding nut M6

8. "Basic" connector, plastic

*without glide strips upon request

"Super-aluminium" trough - the igus® standard for guide troughs

The "Super-aluminium" trough is a modular system of guide troughs for long travels (where e-chains® glide on each other). The basic "Super-aluminium" trough is available in simple, cost-effective "basic designs" and can be expanded for sophisticated plant construction. This universal usability makes it the recommended igus® standard for guide troughs.

Various mounting options with bracket, clamping shoe, interface connectors
Side-mounted glide strips for wear protection on high-speed applications
Corrosion-resistant due to seawater-resistant aluminium
Flexible assembly - fastening on substructure independent of profile lengths and butt joints


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:

Design specificationFurther information on "gliding application"

Very good wear and noise values
Very simple, modular assembly

1. Interface connector

2. Plastic glide bar

3. Clamping shoe

4. Glide strips

5. C-profiles

1. Trough side part, aluminium, 2m

2. Glide bar, plastic, 2m

3. Plastic glide strips*, side, 2m

5. C-profile, galvanised steel

7. Sliding nut M6

9. Heavy-duty bracket option

10. Silencer profile, rubber

11. Screw M6 x 20

*without glide strips upon request

"Super-aluminium" trough - the igus® standard for guide troughs

Various mounting options with bracket, clamping shoe, interface connectors
Side-mounted glide strips for wear protection on high-speed applications
Corrosion-resistant due to seawater-resistant aluminium
Flexible assembly - fastening on substructure independent of profile lengths and butt joints


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:

Design specificationFurther information on "gliding application"

Very good wear and noise values
Very simple, modular assembly

1. Aluminium profiles

2. Plastic glide bar

3. Heavy-duty bracket option

4. Glide strips

5. C-profiles

6. Silencer profiles

1. Guide trough (blue)
2. Glide bar (black)
3. Installation set (red)
4. Individual attachment without C-profile
5. Profile rail length

Guide troughs are used for applications where the upper run of the e-chain® glides on the lower run. When using the igus® guide trough made of steel, the following components are required. Guide trough without glide bars part no. 93.30, guide trough with glide bars part no. 93.31, assembly sets as butt connectors part no. 93.50. XX
.XX indicates the length of the C-profiles on which the guide trough will be mounted. The standard length of the trough parts and glide bars is 2m. The required length of guide trough is determined by the travel length.


Part No. :
A [mm]:
B [mm]:
C [mm]:
D [mm]:
E [mm]:
F [mm]:
G [mm]:
H [mm]:

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:

Design specificationFurther information on "gliding application"

+ Easy assembly using installation sets
+ two-part model – adjustable from chain width
+ Very strong
+ Cost-effective
+ Large selection

Guide trough without glide bars, Part No. 93.30, guide trough with glide bars Part No. 93.31

Installation sets, Part No. 93.50. XX

Part List

Personal contact

GToB Imprint General notes Data protection declaration

hanging (max.) [m]	60
standing (max.) [m]	4
max. side-mounted, unsupported [m]	2
max. vertical, long travels [m]	50

Material of chain links	igumid G
Min. permissible temperature [°C]	-40
Max. permissible temperature [°C]	120
Gliding speed (max.) [m/s]	3
Max. gliding speed [m/s²]	10
Speed FLG max. [m/s]	10
Speed FLG max. [m/s²]	100
Speed FLB max. [m/s]	3
Speed FLB max. [m/s²]	6
Flammability class of chain link	VDE 0304 IIC UL94 HB
